Nickel Titanium Flat Wire Astm F2063 Polished Nickel Titanium Nitinol Wire
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 범주 | 형상 메모리 | 서피스 | / 검정색을 닦으세요 |
|---|---|---|---|
| 사용하기 | fishing/glass/medical/industry | 재료 | 니티놀 |
| Ni (민) | 54.5-57% | 패키지 | 나무상자 패키지 |
| 강조하다 | Nickel Titanium Flat Wire,Polished Titanium Flat Wire,Astm F2063 Nickel Titanium Wire |
||
필요한 제품을 선택하고 게시판에서 당사와 소통 할 수 있습니다.
| Diameter | Tolerances | |
|---|---|---|
| 4.0~2.0mm | ±0.02mm | |
| 2.0~1.0mm | ±0.015mm | |
| 1.0~0.35mm | ±0.01mm | |
| 0.35~0.26mm | ±0.007mm | |
| 0.26~0.15mm | ±0.005mm | |
| 0.15~0.08mm | ± 0.004mm |
제품 설명
Nickel titanium flat wire astmf2063 polished nickel titanium nitinol wire
Nickel titanium (NiTi) flat wire is a shape memory alloy that is commonly used in various medical and dental applications. It is made of a combination of nickel and titanium, which give it unique properties such as superelasticity and shape memory.
NiTi flat wire is typically used in orthodontics for braces because of its ability to apply continuous gentle force to teeth without causing discomfort to the patient. It is also used in other medical devices such as stents, catheters, and guide wires because of its biocompatibility and corrosion resistance.
The flat shape of the wire allows for better control and positioning during dental procedures, and its superelasticity enables it to return to its original shape even after being bent or stretched. Additionally, NiTi flat wire has a longer lifespan compared to traditional metal wires used in orthodontics, making it a popular choice among dentists and orthodontists.
| Name | Grade | Transfermation temperature AF | Form |
Standard
|
| Shape memory nitinol alloy | Ti-Ni-01 | 20℃~40℃ | wire, bar, plate, tube | customer specified or industry standard |
| Ti-Ni-02 | 45℃~90℃ | |||
| Superelastic nitinol alloy | TiNi-SS | -5℃~5℃ | ||
| Low temperature superelastic nitinol alloy | TN3 | -5℃~-15℃ | ||
| TNC | -20℃~-30℃ | |||
| Medical Nitinol alloy | TiNi-SS | 33+/-3℃ | ASTM F2063 | |
| Narrow Hysteresis nitinol alloy | Ti-Ni-Cu | As-Ms≤ 5℃ | wire, bar | |
| Wide Hysteresis nitinol alloy | Ti-Ni-Fe | As-Ms≤150℃ |
Products Show
•Chemical composition: Reference ASTM F2063-2012 or GB 24627-2009;
• Af temperature range: -40C~90C

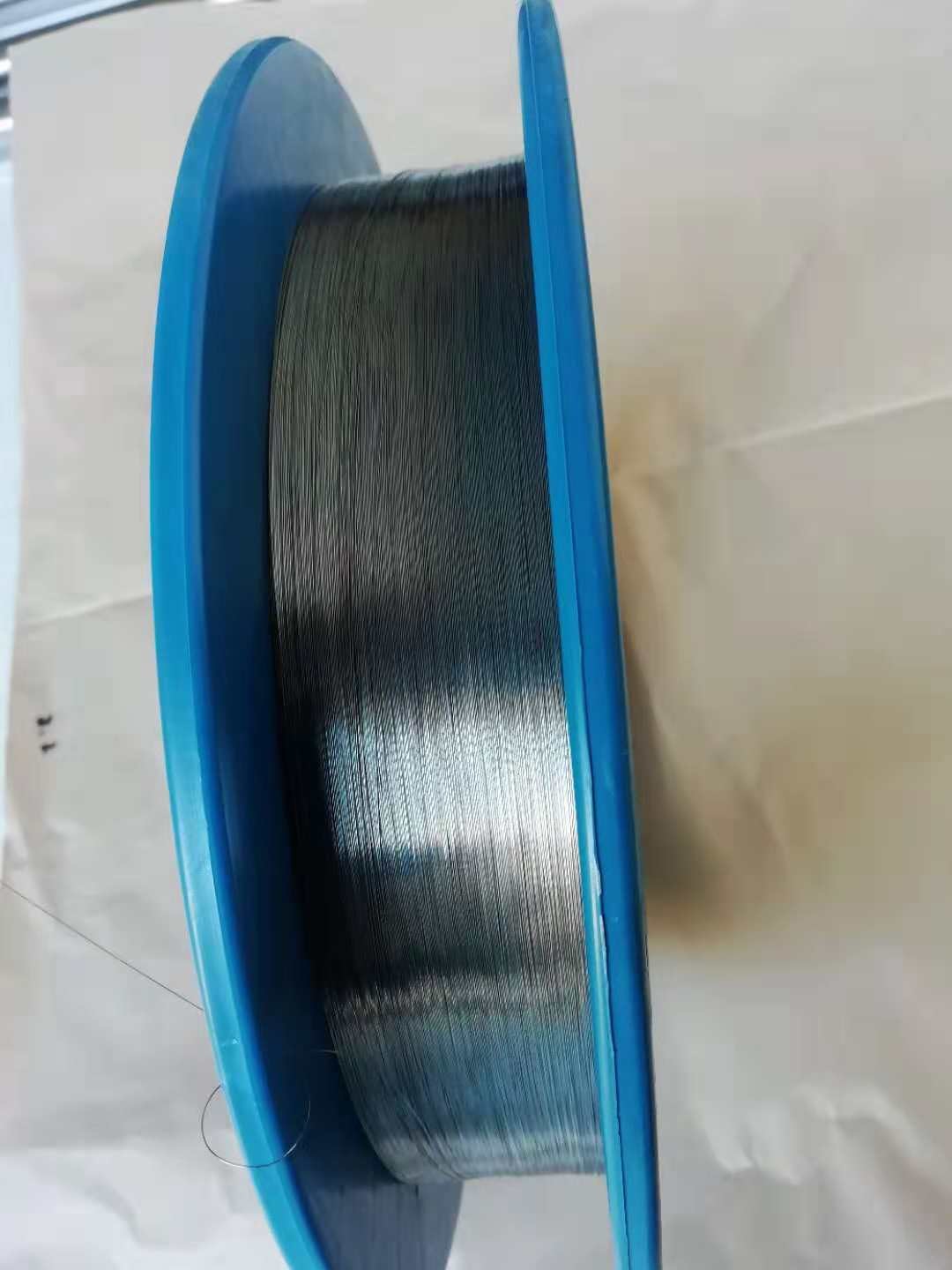

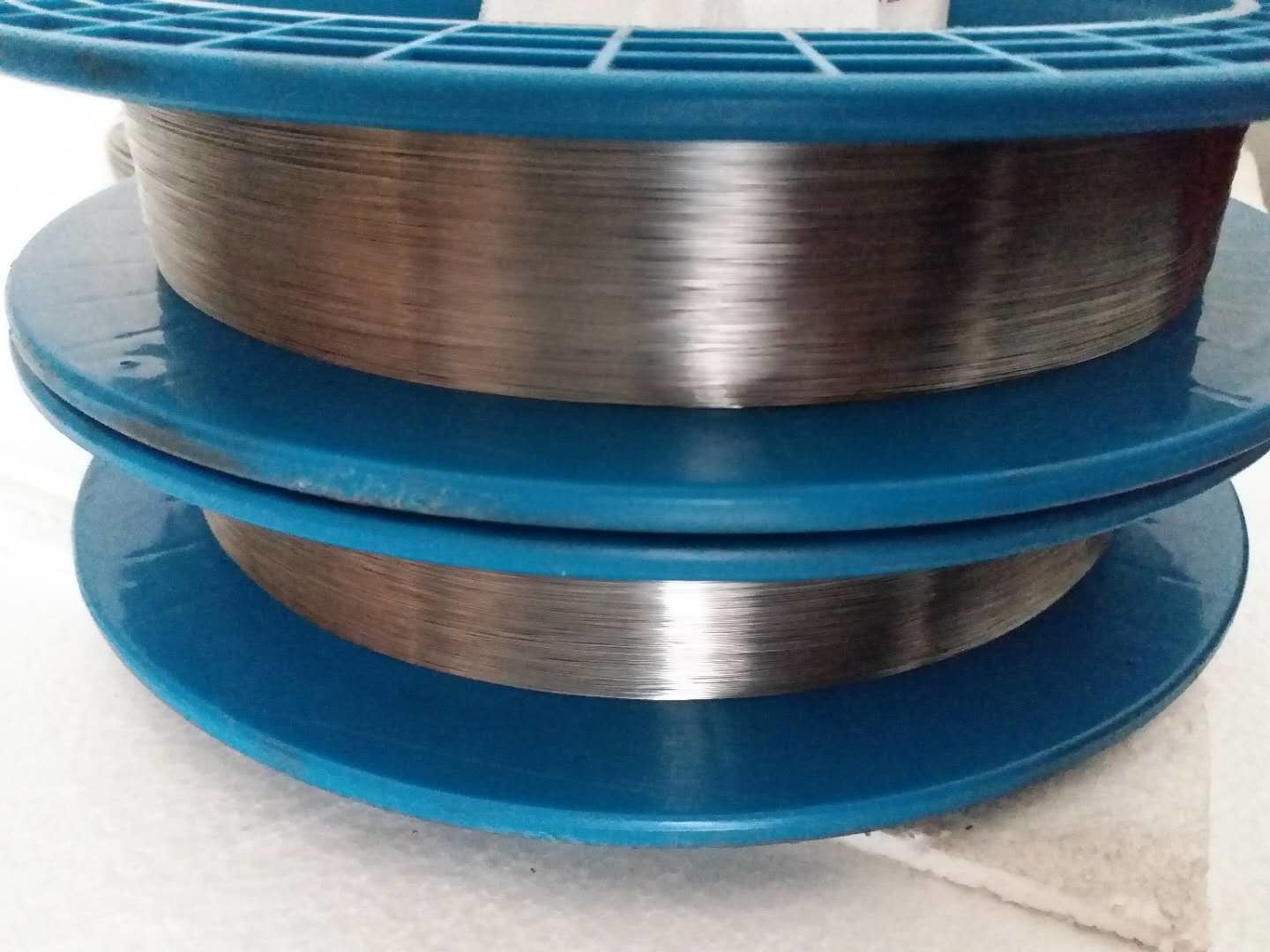

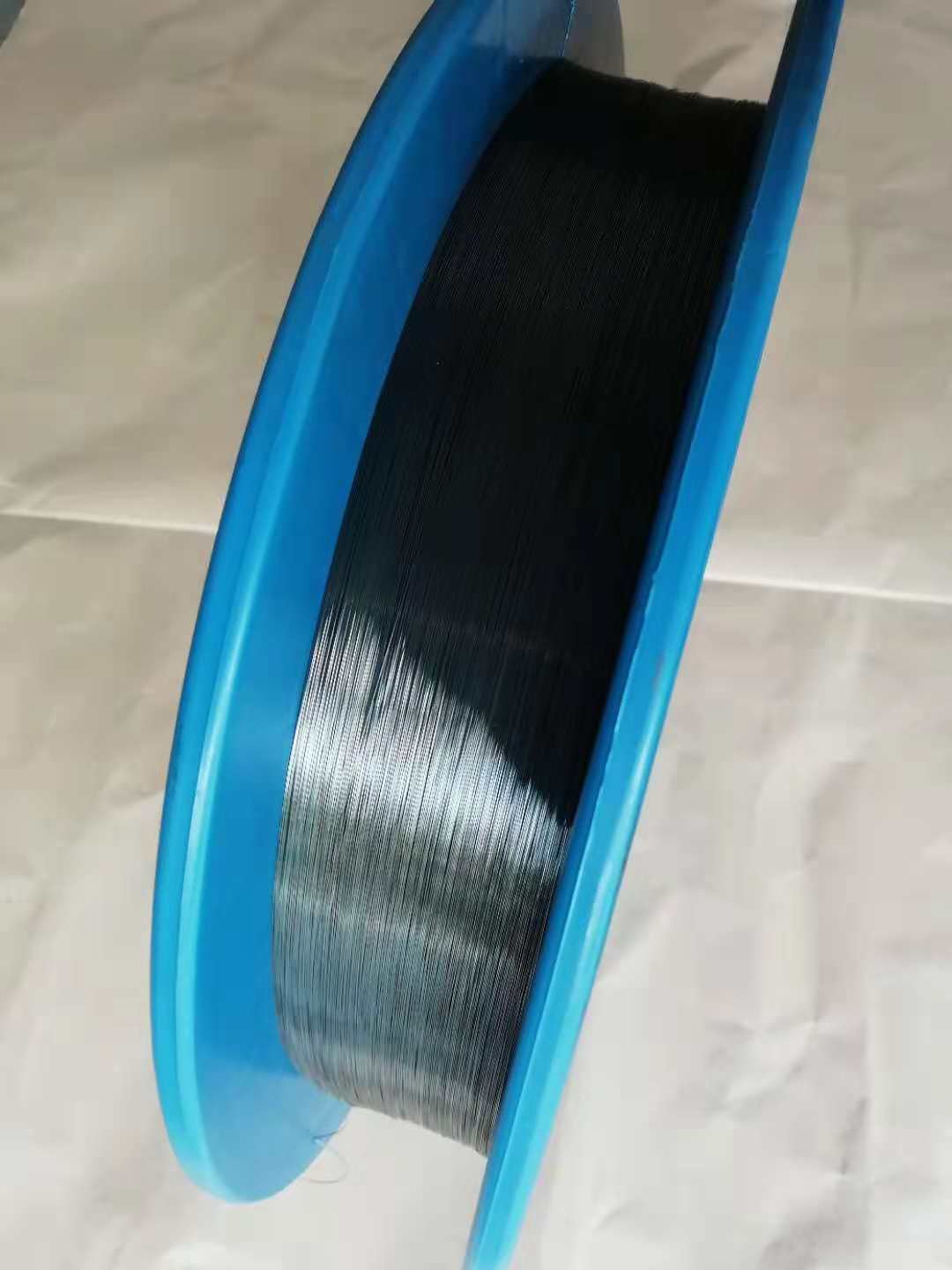

Nitinol Wire
· Diameter 0.25mm
· Surface State Options:
• Oxide surface(including Black oxide, Blue oxide, Amber oxide)
• Etched surface
• Polished surface
• Ground surface
Q1: Can I order a sample quantity ?
A: Yes, we have no MOQ.
Q2: Can I add my logo on the boxes/cartons?
A: Yes,OEM and ODM are available from us.
Q3: What are the benefits of being a distributor ?
A: Special discount Marketing protection.
Q4: How does your factory control the quality of your products?
A: 100% self-inspection before packing. Quality is the life of our factory, first, each raw materials, come to our factory, we will test it first, if qualified, we will process the manufacturing with this raw materials, if not, we will return it to our supplier, and after each manufacturing step, we will test it, and then all the manufacturing process finished, we will do the final test before the commodities left our factory.
Q5: Can we mix items in one 20ft container?
A: Yes.
Q6: Can I have a visit to your factory before the order?
A: Sure,welcome your visit of factory.
