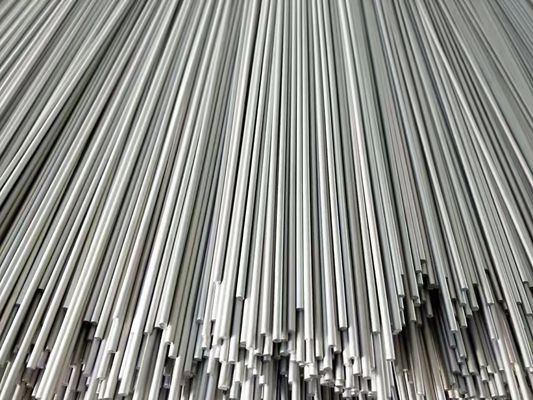

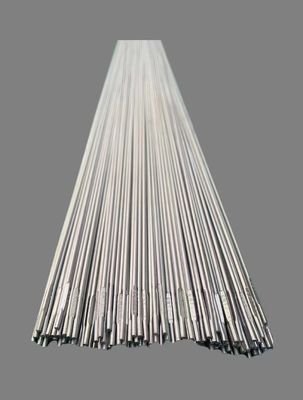

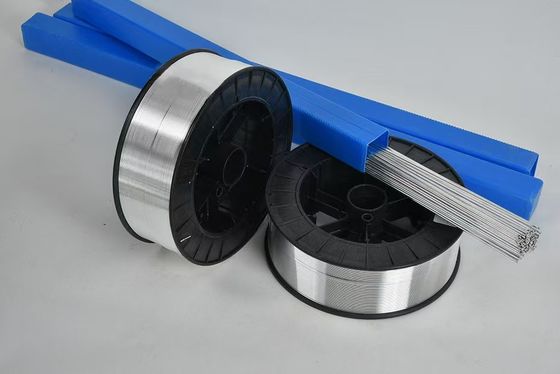

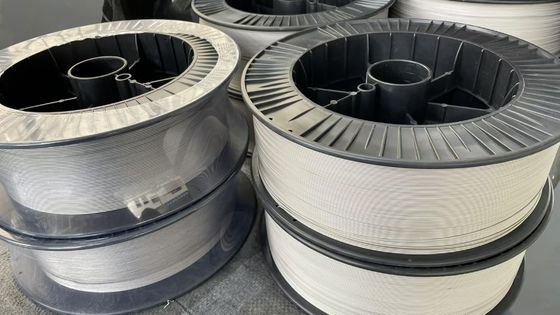

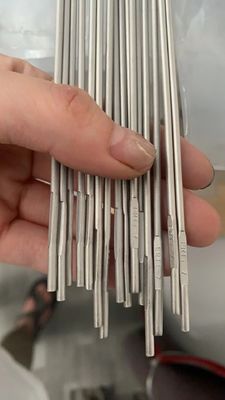

AWS A5.16 ERTi-1 ERTi-7 2.0mm 2.4mm 3.2mm Titanium Welding Wire For Biomedical
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 재료 등급 | 클래스 1-5 (미국), Ti Gr1-Gr5 (유럽) | 권선 가공 | 냉간 압연 직선 |
|---|---|---|---|
| 와이어 직경 | 2.0mm 2.4mm 3.2mm 등 | Materail | ERTI-1, ERTI-2, ERTI-5, ERTI-7 |
| 와이어 표면 | 밝은 표면 | 핵심 단어 | 티타늄 플랫 와이어 |
| 부식 저항 | 훌륭한 | 상태 | 코일과 직선 |
| 전기 전도성 | 보통의 | 사용 | fishing/glass/medical/industry |
| 기술 | 콜드 롤링 핫 롤 | 애플리케이션 | 용접, 3D 프린팅, 항공 우주, 의료 |
| 표면 | 밝은 | 표면 마감 | 광택, 산화 |
| 패키지 | 표준 내보내기 패키지 | ||
| 강조하다 | AWS A5.16 티타늄 용접 유선,ERTi-1 생의학적 용접선,3.2mm 티타늄 용접선 |
||
제품 설명
Introduction
Gr1 Titanium Welding Wire is a commercially pure titanium wire containing a minimum of 99% titanium. It is the softest and most ductile of all titanium grades, making it easy to form into various shapes and sizes.
This wire is typically produced through a cold drawing process, where a titanium rod is pulled through a series of dies to reduce its diameter while improving mechanical strength and surface finish.
Thanks to its excellent corrosion resistance and high-temperature stability, Gr1 titanium wire is widely used in the chemical industry, particularly for equipment that operates under harsh conditions involving high temperatures, pressure, and corrosive media.
Specification
| Item | Details |
|---|---|
| Product Name | Titanium Welding Wire |
| Grades Available | Gr1, Gr2, Gr5, Gr7, etc. |
| Standards | ASTM B348, ASTM SB348, ASTM B863 |
| Size Range | Diameter: 0.1 mm – 6 mm |
| Surface Finish | Pickled, Polished |
| Process | Cold Rolled / Cold Drawn |
| Applications | Aerospace, Chemical Equipment, Medical Devices |
Chemical Composition (Typical for Grade 1)
| Element | N | C | H | Fe | O | Al | V | Ti | Other (max) |
|---|---|---|---|---|---|---|---|---|---|
| Content (%) | 0.03 | 0.08 | 0.015 | 0.18 | 0.20 | — | — | Balance | 0.4 |
Mechanical Properties
| Grade | Tensile Strength (min) | Yield Strength (0.2% offset) | Elongation (%) |
|---|---|---|---|
| KSI / MPa | KSI / MPa | ||
| Gr1 | 35 / 240 | 25 / — | — |
Applications
Chemical Equipment Fabrication
Used in the manufacturing of reactors, heaters, heat exchangers, storage tanks, and other components that operate under corrosive, high-temperature, and high-pressure conditions.
Equipment Connection and Repair
Essential for welding Gr2 titanium components, providing strong, corrosion-resistant joints in chemical and industrial systems.
Biomedical Devices
Increasingly used in orthopedic implants, dental prostheses, and cardiovascular components, due to its excellent biocompatibility, non-toxicity, and resistance to body fluids.
