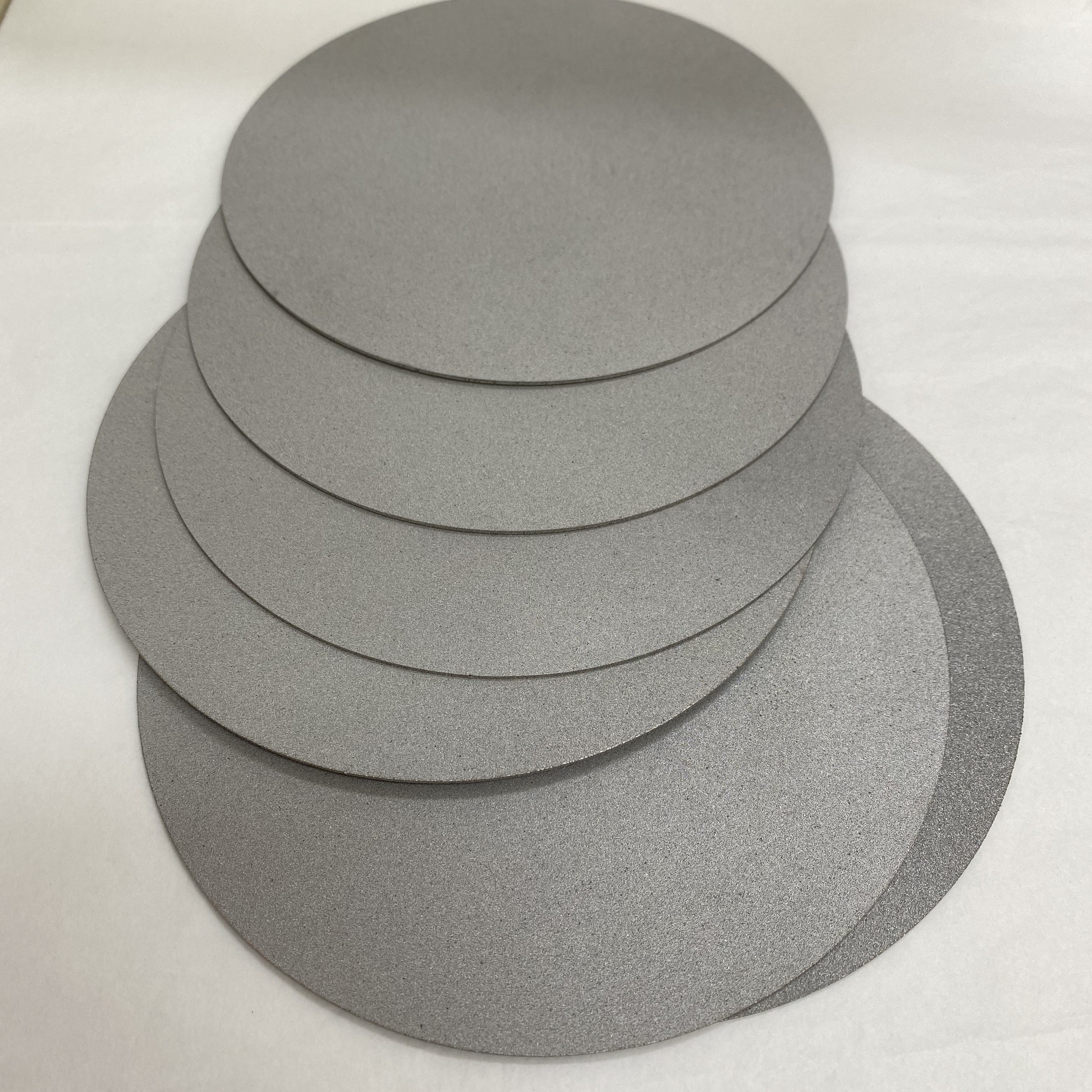

Sintered Plate Inconel600 Titanium SS 316L For Filtration And Separation
제품 상세 정보
| 여과 정확도 | 0.1um | 마모 저항 | 높은 |
|---|---|---|---|
| 특성 | 부식성이 높은 환경에서 사용 | 여과 영역 | 0.3-1.0m2 |
| 사양 | 0.5 um, 2 um, 5 um, 10 um, | 지름 | 50-1000mm |
| 재료 | 티타늄, SS 316L, Inconel600 등 | 샘플 서비스 | 테스트를 위한 샘플을 제공하세요 |
| 유형 | 금속, SS 필터 디스크 | 기준 | ISO9000 |
| 작동 압력 | 2-3Mpa | 포장 | 표준 내보내기 패키지 |
| 서비스 수명 | 2-5 년 | 최대 압력 | 2.0mpa |
| 차원 | 사용자 정의 | ||
| 강조하다 | 합금된 포러스 인코넬600 필터 플레이트,티타늄 합성 필터레이션 판,SS 316L 합금 분리판 |
||
제품 설명
Introduction
Compared with traditional filtration materials such as paper, cotton, PP, PE, PES, and PTFE, metal powder sintered porous materials offer superior performance. They provide excellent permeability, precise pore size control, stable shape, high filtration accuracy, wear resistance, good mechanical strength, and excellent heat conduction and dissipation.
Moreover, sintered metal materials can withstand high temperatures, maintain their shape under stress, and be cleaned and reused multiple times, making them a durable and cost-effective filtration solution.
Specifications
| Product Name | Sintered Plate |
|---|---|
| Material | Pure Titanium / SS316L / Bronze / Inconel 600 |
| Size | OD 20–80 mm × WT 2.5–3.0 mm × L 10–1200 mm |
| Filter Accuracy | 0.5–80 µm |
| Connection | Customized according to customer requirements |
| Applications | Sparging, Separation and Filtration, Carbonation, Liquid Filtration, etc. |
Technical Parameters
| Filter Accuracy (µm) | Porosity (%) | Permeability (m³/m²·h·kPa) | Compression Strength (MPa) | Temperature Tolerance (°C) | Max Working Pressure (MPa) |
|---|---|---|---|---|---|
| 0.5–50 | 20–50 | 3–800 | 2–3 | 250 | 0.6 |
Applications
The sintered plate is widely used in industries including electronics, water treatment, food and beverage, biotechnology, chemicals, petrochemicals, metallurgy, and gas purification. It represents a new generation of filtration materials with broad development potential.
Typical applications include:
-
Sparging
-
Separation and Filtration
-
Carbonation
-
Liquid Filtration
-
Catalyst Recovery
-
Steam Filtration
-
Slurry Oil Filtration
-
Flame Arrestors
-
Sound Silencing
-
Fluid Distribution and Control
-
Semiconductor Manufacturing
-
Fuel Cell Stacks
-
Coating Electrodes
-
Damping and Shock Absorption
-
Heat Exchange
-
Bio-Implants
Properties
-
Uniform pore size and stable pore structure with high separation efficiency
-
High porosity, low filtration resistance, and excellent permeability
-
Outstanding chemical stability and resistance to acids, alkalis, and oxidation
-
Morphological stability—no particle shedding; compliant with food hygiene and pharmaceutical GMP standards
-
Strong mechanical properties, low differential pressure, and large flow capacity
-
Excellent anti-microbial characteristics, non-reactive with microorganisms
-
Easy online regeneration, backwashing, and long service life
-
Excellent biocompatibility for use in biological, food, pharmaceutical, and medical applications
-
Effective electromagnetic shielding performance
-
Strong damping and shock resistance
