x제품 상세 정보
| 마모 저항 | 높은 | 온도 저항 | ≤400℃ |
|---|---|---|---|
| 샘플 서비스 | 테스트를 위한 샘플을 제공하세요 | 최대 압력 | 2.0mpa |
| 재료 | SS 316L, 티타늄, Inconel600, Monel400, ETXC. | 다른 서비스 | 플라티움, Ir, Ru 코팅 티타늄 판 |
| 표면 처리 | 세련 | 여과 영역 | 0.3-1.0m2 |
| 이점 | 높은 다공성과 투과성 | 유형 | 티타늄 필터 요소 |
| 압축 강도 | ≥0.6MPA | 필터 등급 | 0.5um-50um |
| 필터 매체 | 니켈 가루 | 일하는 삶 | 10 년 이상 |
| 온도 | 0-200 ℃ |
제품 설명
Introduction
Compared with the traditional filtration materials such as paper, cotton, PP, PE, PES, PTFE, etc., the metal powder sintered porous materials have good permeability, pore size and pore control, stable shape, high filtration accuracy, wear resistance, good mechanical properties, good heat conduction, heat resistance, and heat dissipation, and can be repeatedly washed and used for many times.
Specifications
| Product name | SS 316L sintered tube |
| Material | Pure titanium/SS316L/Bronze |
| Size | OD20-80*WT2.5-3.0*L10-1200mm |
| Filter accuracy | 0.5-80microns |
| Connection | Customised according to customer requirements |
| Application | Sparging, Separation and filtration, Carbonisation, Liquid filtration, etc. |
Parameter
| Filter accuracy | Porosity | Penetrability |
Compression strength |
Temperature toleration |
Max working pressure |
| 0.5-50μm | 20-50% | 3-800m³/㎡hkpa | 2-3Mpa | 250℃ | 0.6Mpa |

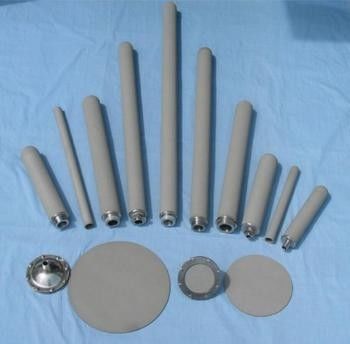

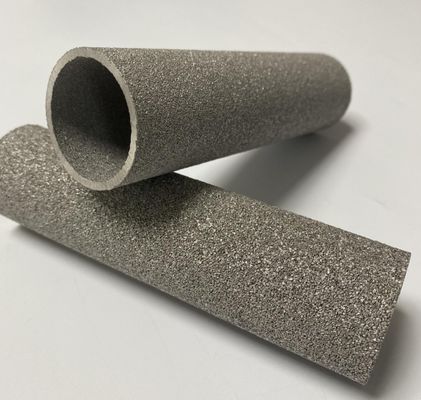

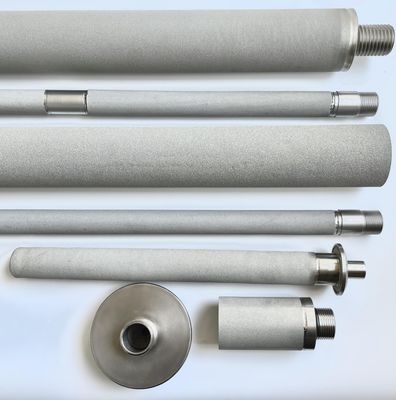

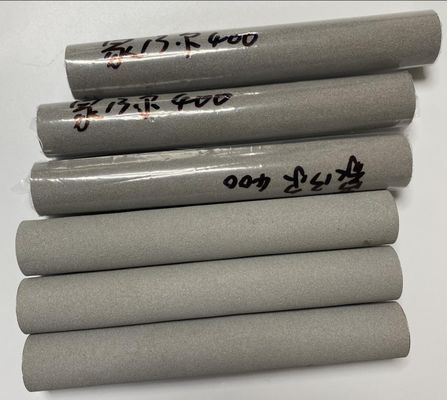

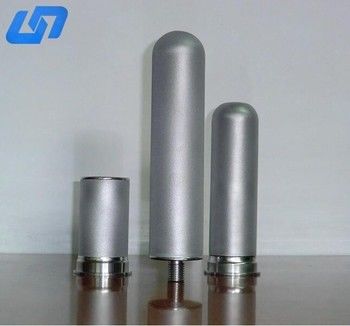

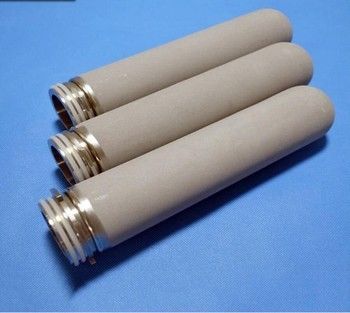

Product photo
Performance
Excellent mechanical properties, stable characteristics, uniform pore size distribution, good air permeability,
superior chemical stability, high-temperature resistance, acid and alkali resistance, fireproof and anti-static.
Application Environments
Suitable for use in environments containing nitric acid, sulphuric acid, acetic acid, oxalic acid, phosphoric acid, 5% hydrochloric acid, molten sodium,
liquid hydrogen, liquid nitrogen, hydrogen sulphide, acetylene, water vapour, hydrogen gas, coal gas,
carbon dioxide gas, etc. Widely employed in catalyst recovery, chemical processing,
beverage production, food processing, metallurgy, coarse and fine filtration of liquids;
dust and oil mist removal from various gases and vapours;
sound attenuation, flame retardancy, and gas buffering.
